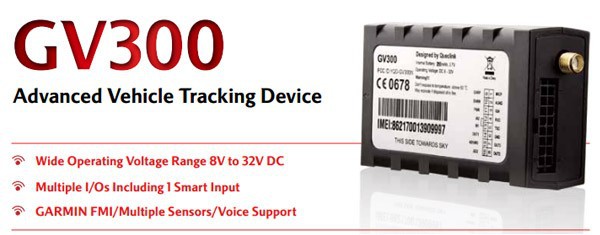

Advanced Vehicle Tracking Device gv300 GPS tracker Support emergency, geo-fence, low battery and scheduled GPS position
- Product Numbers：2015919154619
- Price：
- Product description：
INTRODUCTION:
Advanced Vehicle Tracking Device gv300 GPS tracker Support emergency, geo-fence, low battery and scheduled GPS position
Product Description:
The GV300 is a compact GPS tracker designed for a wide variety of vehicle tracking applications. It has multiple I/O interfaces that can be used for monitoring or controlling external devices. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the GV300's location to be monitored in real time or periodically tracked by a backend server and mobile devices. Its built-in 3-axis accelerometer allows motion detection and extends battery life through sophisticated power management algorithms. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, driving behavior, low battery and scheduled GPS position.

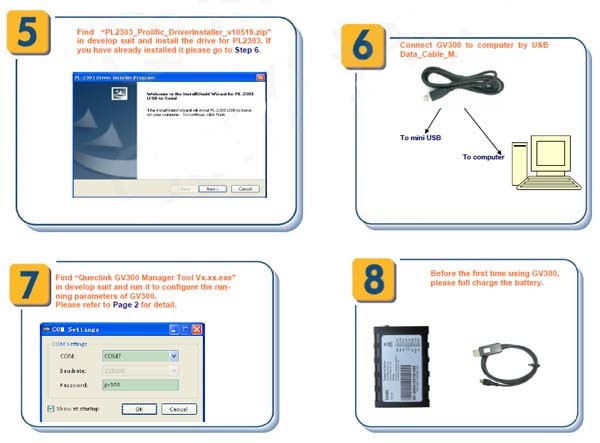

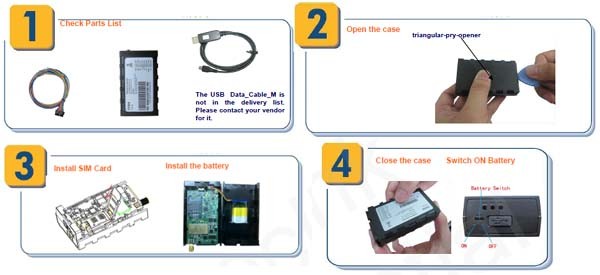

Basic Operation:
Features:
- Wide operating voltage range 8V to 32V DC
- Internal u-blox chipset
- Low power consumption, long standby time with internal battery
- Quad band GSM/GPRS 850/900/1800/1900 MHz
- Embedded full featured @Track protocol
- Multiple I/O interfaces for monitoring and control
- Internal 3-axis accelerometer supporting driving behavior monitoring, power conservation and motion detection
- Internal GSM antenna
- Internal and external GPS antenna
- CE/FCC/E-Mark certified
Specification:
GSM Specifications
Frequency |
Quad band: 850/900/1800/1900 MHz Compliant to GSM phase 2/2+ -Class 4 (2W @ 850/900 MHz) -Class 1 (1W @ 1800/1900 MHz) |
GPRS |
GPRS multi-slot class 12
|
RMS Phase Error |
5 deg |
Max Out RF Power |
GSM850/GSM900: 33.0±2 dBm DCS/PCS: 30.0±2 dBm |
Dynamic Input Range |
-15 ~ -108 dBm |
Receiver Sensitivity |
Class 2 RBER 2% (-107 dBm) |
Stability Of Frequency |
< 2.5 ppm |
Max Frequency Error |
±0.1 ppm |
GPS Specifications
GPS Chipset |
56-channel u-blox All-In-One GPS receiver |
Sensitivity |
Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm |
Position Accuracy (CEP) |
Autonomous: < 2.5m SBAS: < 2.0m |
TTFF (Open Sky) |
Cold start: 27s average Warm start: 27s average Hot start: 1s average |
Interfaces
Digital Inputs |
Three digital inputs One positive trigger for ignition detection Two negative trigger inputs for normal use |
Configurable Inputs |
One special input can be configured to negative trigger digital input or analog input (0-16V) |
Analog Inputs |
One analog input (0.3-16V) |
Digital Outputs |
Two digital outputs, open drain, 150 mA max current drain |
Latched Digital Outputs |
One digital output with internal latch circuit, open drain, 150 mA max current drain |
Two-way Audio |
Two differential outputs/one single end input |
GSM Antenna |
Internal only |
GPS Antenna |
Internal and optional external GPS antenna |
Indicator LED |
GSM, GPS and power |
Mini USB Port |
Mini USB port for upgrading and debugging |
Serial Port |
One RS232 serial port on 16 pin molex type connector, for external devices (GARMIN protocol support) |
General Specifications
Dimensions |
80mm*49mm*26mm |
Weight |
71g |
Backup Battery |
Li-Polymer 250 mAh |
Standby Time |
Without reporting: 90 hours 5 minutes reporting: 48 hours 10 minutes reporting: 50 hours |
Operating Voltage |
8V to 32V DC |
Operation Temperature |
-30 ~ +80Centigrade -40 ~ +80Centigrade for storage |
Air Interface Protocol
Transmit Protocol |
TCP, UDP, SMS |
Scheduled Timing Report |
Report position at preset time and distance intervals |
Geo-fence |
Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions |
Low Power Alarm |
Alarm when backup battery is low |
Power On Report |
Report when the device is powered on |
Tow Alarm |
From internal 3-axis accelerometer |
Antenna Disconnect Alarm |
Alarm when the external GPS antenna is disconnected |
Driving Behavior Monitoring |
Aggressive driving behavior detection, e.g. harsh braking and acceleration |
Crash Detection |
Accident data collection for reconstruction and analysis |
Special Alarm |
Special alarm based on the digital/analog inputs |
Remote Control |
OTA control of outputs |

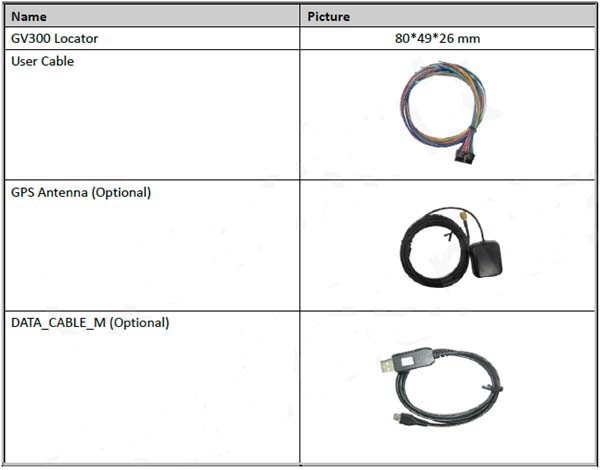

Packing list:
Just 1pcs GV300 and user cable,if you need optional accessory,Purchased separately
