Compact Vehicle Tracking Device With Internal Battery GV55 GPS tracker has multiple digital/analog I/Os
- Product Numbers：2015919154842
- Price：
- Product description：
INTRODUCTION:
Compact Vehicle Tracking Device With Internal Battery GV55 GPS tracker has multiple digital/analog I/Os
Product Description:

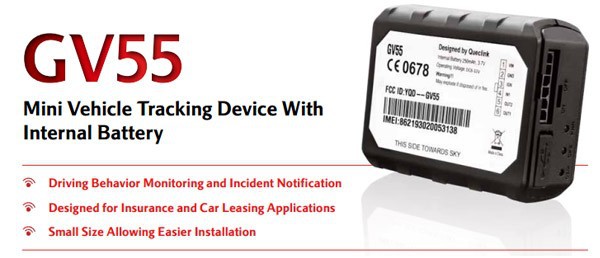

The GV55 is a mini GPS tracker designed for a wide variety of vehicle tracking applications. It has multiple I/O interfaces that can be used for monitoring or controlling external devices. Its built-in GPS receiver has superior sensitivity and fast time to first fix. Its quad band GPRS/GSM subsystem supports 850/900/1800/1900 MHz allowing the GV55's location to be monitored in real time or periodically tracked by a backend server and mobile devices. Its built-in 3-axis accelerometer allows motion detection and extends battery life through sophisticated power management algorithms. System integration is straightforward as complete documentation is provided for the full featured @Track protocol. The @Track protocol supports a wide variety of reports including emergency, geo-fence boundary crossings, driving behavior, low battery and scheduled GPS position.
Features:
- Extremely compact enclosure 63mm*50mm*21.8mm
- Internal 3-axis accelerometer supporting driving behavior monitoring, power conservation and motion detection
- Internal u-blox chipset
- Low power consumption, long standby time with internal battery
- Quad band GSM/GPRS 850/900/1800/1900 MHz
- Embedded full featured @Track protocol
- Multiple I/O interfaces for monitoring and control
- Internal GSM antenna
- Internal GPS antenna
- CE/FCC/E-Mark certified
Basic operation:
Specification:
GSM Specifications
|
Frequency |
Quad band: 850/900/1800/1900 MHz ompliant to GSM phase 2/2+ -Class 4 (2W @ 850/900 MHz) -Class 1 (1W @ 1800/1900 MHz) |
|
GPRS |
GPRS multi-slot class 12 GPRS mobile station class B |
|
RMS Phase Error |
5 deg |
|
Max Out RF Power |
GSM850/GSM900: 31-35dBm DCS/PCS: 28-32 dBm |
|
Dynamic Input Range |
-15 ~ -108 dBm |
|
Receiver Sensitivity |
Class 2 RBER 2% (-107 dBm) |
|
Stability Of Frequency |
< 2.5 ppm |
|
Max Frequency Error |
0.1 ppm |
GPS Specifications
|
GPS Chipset |
56-channel u-blox All-In-One GPS receiver |
|
Sensitivity |
Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm |
|
Position Accuracy (CEP) |
Autonomous: < 2.5m SBAS: < 2.0m |
|
TTFF (Open Sky) |
Cold start: 27s average Warm start: 27s average Hot start: 1s average |

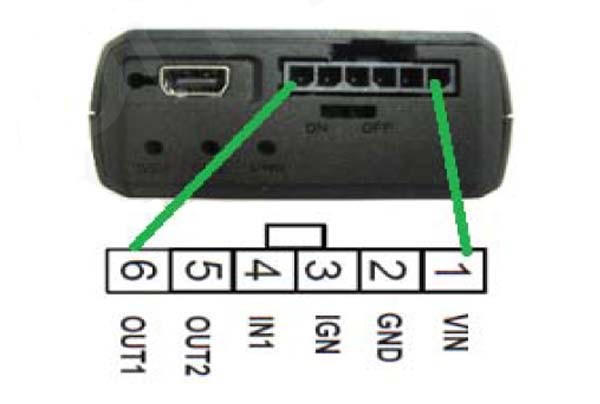

Interfaces
|
Digital Inputs |
Two digital inputs One positive trigger for ignition detection One negative trigger input for normal use |
|
Digital Outputs |
One digital output, open drain, 150 mA max current drain |
|
Latched Digital Outputs |
One digital output with internal latch circuit, open drain, 150 mA max current drain |
|
GSM Antenna |
Internal only |
|
GPS Antenna |
Internal only |
|
Indicator LED |
GSM, GPS and power |
|
Mini USB Port |
Mini USB port for upgrading and debugging |
General Specifications
|
Dimensions |
63mm*50mm*21.8mm |
|
Weight |
50g |
|
Backup Battery |
Li-Polymer 250 mAh |
|
Standby Time |
Without reporting: 59 hours 5 minutes reporting: 35 hours 10 minutes reporting: 45 hours |
|
Operating Voltage |
8V to 32V DC |
|
OperatingTemperature |
-30 ~ +80Celsius -40 ~ +80Celsius for storage |
Air Interface Protocol
|
Transmit Protocol |
TCP, UDP, SMS |
|
Power Supply Monitoring |
Alarm status reporting of the external power and backup battery of the device |
|
Scheduled Report |
Report position at a preset time interval, distance, mileage or combination of these values |
|
Geo-fence |
Geo-fence alarm and parking alarm, support up to 20 internal geo-fence regions |
|
Tow Alarm |
Alarm report for movement when ignition is off |
|
Speed Alarm |
Flexible speed monitoring for unusual speed alarm |
|
Driving Behavior Monitoring |
Aggressive driving behavior detection, e.g. harsh braking and acceleration |
|
Crash Detection |
Accident data collection for reconstruction and analysis |
|
Special Alarm |
Special alarm based on the digital inputs |
|
Remote Control |
OTA control of device outputs |

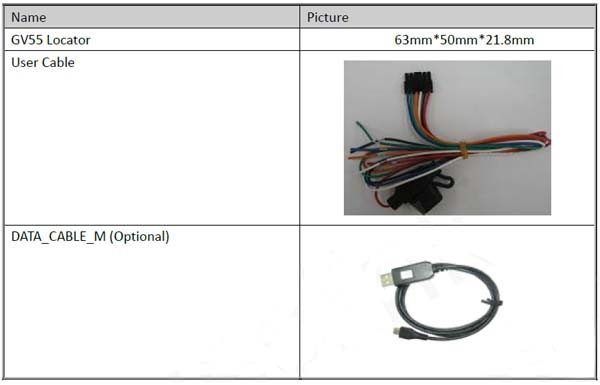

Packing list:
Just contain GV55 and user cable,if you need DATA_CABLE_M,Purchased separately
If you need it,please buy it directly through our aliexpress shop:
http://www.aliexpress.com/store/1318091
