IPX7 Waterproof Hibernating Asset Tracking Device GL505 GPS tracker powered by two batteries
- Product Numbers：201591915306
- Price：
- Product description：
INTRODUCTION:
IPX7 Waterproof Hibernating Asset Tracking Device GL505 GPS tracker powered by two batteries
Product Description:
The GL505 is a powerful waterproof GPS tracker designed for fixed asset tracking applications. It is powered by two user replaceable CR123A lithium batteries. Configuration allows it to wake up on a preset schedule to check if it needs to shift from dormant to active status and/or send update of its current location, then returning to a dormant state. Optimally configured, it will operate autonomously for 1000 days. Its built-in 3-axis accelerometer allows the GL505 to detect asset movement and transmit an alert message. The integrated @Track interface protocol allows the GL505 to communicate with a customer mobile phone or a backend server via GPRS/SMS and transfer reports of GPS position, etc. System integrators can easily incorporate the GL505 into existing tracking systems based on this full featured protocol.
Features:
- Waterproof, IPX7 compliant
- Low power consumption, long standby time for more than 1000 days
- Powered by two user replaceable lithium batteries (CR123A)
- Internal u-blox chipset
- Quad band GSM/GPRS 850/900/1800/1900 MHz
- Embedded @Track protocol
- Internal 3-axis accelerometer for motion detection
- Internal GSM antenna
- Internal GPS antenna
- CE/FCC certified
Specification:
GSM Specifications
Frequency |
Quad band: 850/900/1800/1900 MHz Compliant to GSM phase 2/2+ -Class 4 (2W @ 850/900 MHz) -Class 1 (1W @ 1800/1900 MHz) |
GPRS |
GPRS multi-slot class 10 GPRS mobile station class B |
RMS Phase Error |
5 deg |
Max Out RF Power |
GSM850/GSM900: 33.0±2 dBm DCS/PCS: 30.0±2 dBm |
Dynamic Input Range |
-15 ~ -108 dBm |
Receiver Sensitivity |
Class 2 RBER 2% (-107 dBm) |
Stability Of Frequency |
< 2.5 ppm |
Max Frequency Error |
±0.1 ppm |
GPS Specifications
GPS Chipset |
50-channel u-blox All-In-One GPS receiver |
Sensitivity |
Autonomous: -147 dBm Hot start: -156 dBm Reacquisition: -160 dBm Tracking: -162 dBm |
Position Accuracy |
Autonomous: < 2.5m SBAS: < 2.0m |
TTFF (Open Sky) |
Cold start: 27s average Warm start: 27s average Hot start: 1s average |
Interfaces
GSM Antenna |
Internal only |
GPS Antenna |
Internal only |
Internal Indicator LED |
GSM, GPS and battery status |
Serial Port |
Internal 8 pin connector for upgrading or debugging |
General Specifications
Dimensions |
118mm*69.5mm*26.8mm |
Weight |
105g (without batteries) |
Batteries |
Two CR123A lithium batteries 1500 mAh |
Standby Time |
Standby current: < 10 uA SMS count: 1000 SMS SMS reporting standby: One SMS report per day: 1000 days TCP reporting standby: One report per day: 950 days Four reports per day: 248 days Five minutes reporting: 4 days |
Waterproof |
IPX7 compliant |
Operating Temperature |
-20 ~ +60 |
Air Interface Protocol
Command Set |
@Track protocol commands Simple SMS commands |
Transmit Protocol |
TCP, UDP, SMS |
Working Mode |
Power save mode, for long standby time Continuous mode, for emergency tracking |
Scheduled Timing Report |
Report position and status according to preset time schedules |
Geo-fence |
Support up to 5 internal geo-fence regions |
Low Power Alarm |
Alarm when internal battery is low |
Motion Detection |
Motion alarm trigger and optional change of working mode |
Wakeup Report |
Report when the device wakes up |

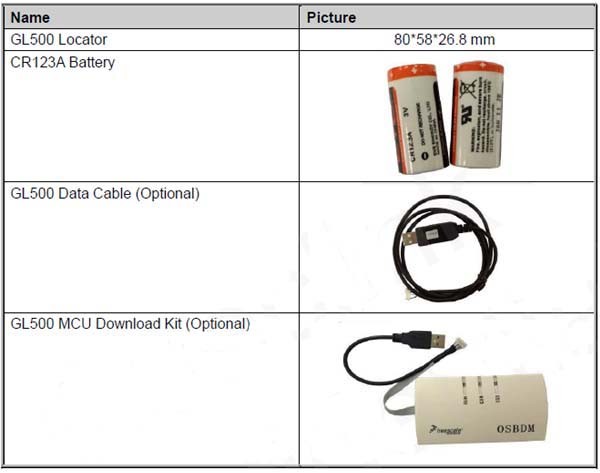

Packing list:
1PCS GL505,2PCS Battery,for Optional accessory,you need Purchased separately
