1.General Description

1. UR100 use 9600 baud rate, data bits: 8, stop bits: 1, Parity bits: None.

2.When the UR100 detected the IC card, it will send card data to the serial port, the data format refers to the following:

AT+QLIDNFO=<version>,<ID DATA>,<checksum(XOR)>.

For example: AT++GLIDNFO=0,12345678,<check sum>,

check sum = 0x31^0x32^0x33^0x34^0x35^0x36^0x37^0x38

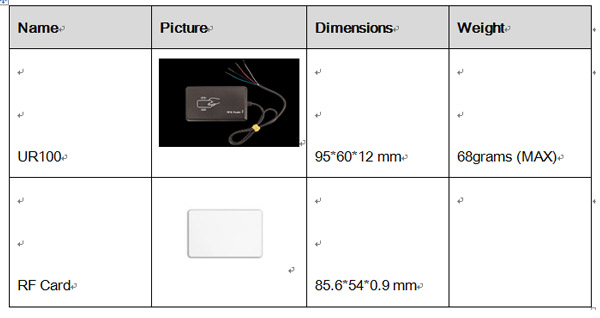

2.Packing list:

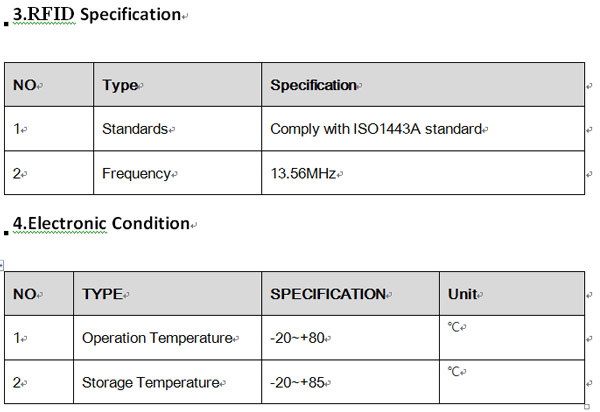

5.Power Connection

VIN(PIN1)/GND(PIN2) are the power input pins. The input voltage range for this device is from 7V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V systems without the need for external transformers.

6.Light Indicator

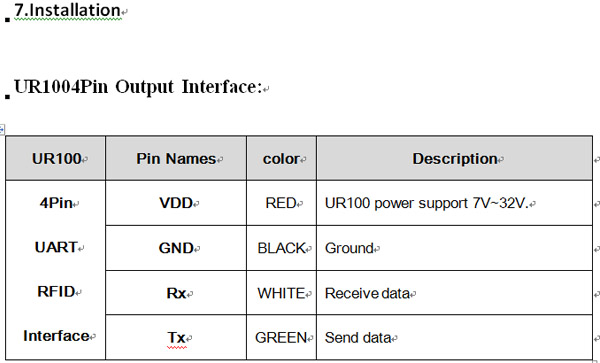

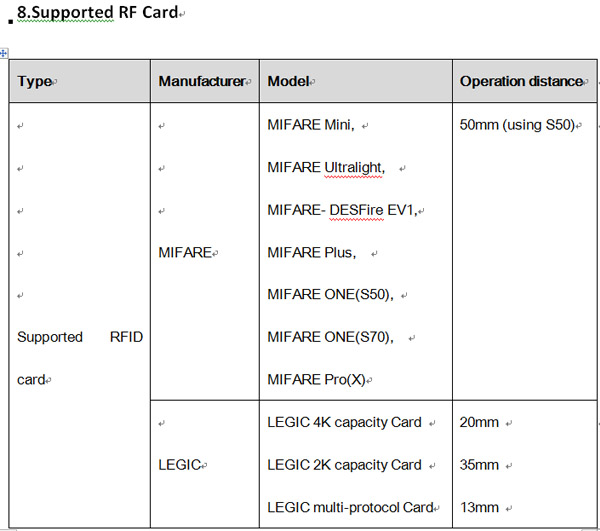

UR100 have one led that is two color lamp, red color is power led, blue color flash three times that express send data success.
